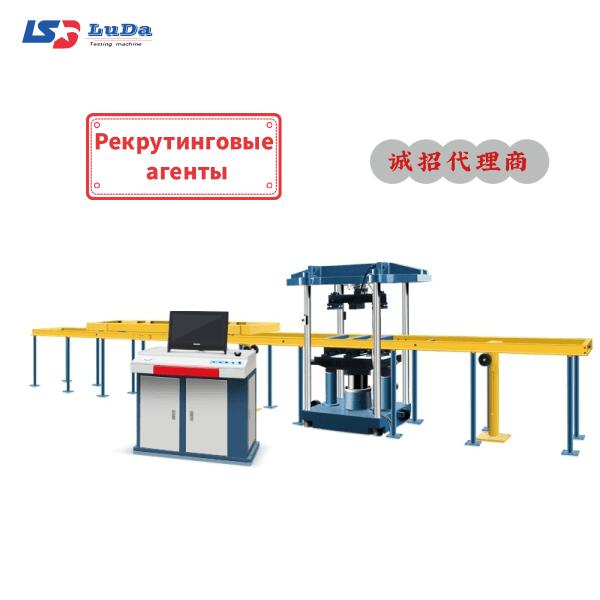

TSY-500 Static Load Sleeper Testing Machine
|
Поделитесь страницей в Социальных сетях
|
|
枕木静载试验机是测试混凝土枕木（Ⅰ型枕木、Ⅱ型枕木、Ⅲ型枕木、叉枕、桥枕、宽轨枕等）静载抗裂试验的设备。产品符合TB/T1879-2002《预应力混凝土枕芯静载开裂试验方法》标准。 特点： 本机测力采用高精度载荷传感器、微电脑程序控制、电液比例液压加载系统等技术。 用定位尺（自备）调整枕木位置，使荷重中心与压板中心重合。 按照设定的工作程序，活塞运动自如。 配备三个高精度辐条传感器，确保三个独立压力点数据准确，并配备专用LED裂纹观察灯。为了方便国外标准的轨枕试验，可以调整支点。 加载过程采用变结构PID控制算法进行调整，恒速控制误差≤5%，保压控制误差≤0.5%。加载速度均匀加载。 可任意设定静载点，自动打印数据结果报告。 Main technical parameters and specifications: | Model Specification | TSY-500 | | The Maximum Load Value under the Rail (Kn) | 500 | | Load Indication Accuracy | ±1% | | Initial Load (Kn) after Placing the Sleeper | <20 | | Loading Speed (N/s) | 3000±300 | | Hold Time (s) | 180 | | Piston Maximum Stroke (mm) | 250 | | Adjustable Under-rail Loading Distance (mm) | 600, 700, 800 | | Adjustable Loading Distance in the Rail (mm) | 600, 1500 | | Test space: Distance between Upper and Lower Supports (mm) | 430 | | Distance between Four Columns (mm) | 820, 900 | | Dimensions: Host (mm) | 1720×990×2266 | | Carriage (mm) | 3390*700×135 | | Control Cabinet (mm) | 820×600×610 | | Related Parameters of Hydraulic Pump Station: | | | Rated Pressure | High Pressure Oil Pump 31.5Mpa | | Rated Displacement | High Pressure Oil Pump 25ml/rec | | Motor Power | 1.2KW Speed 980rpm | | Power Supply Voltage | AC380V±10%, 50Hz with zero line |
Цена: 99999 руб.
