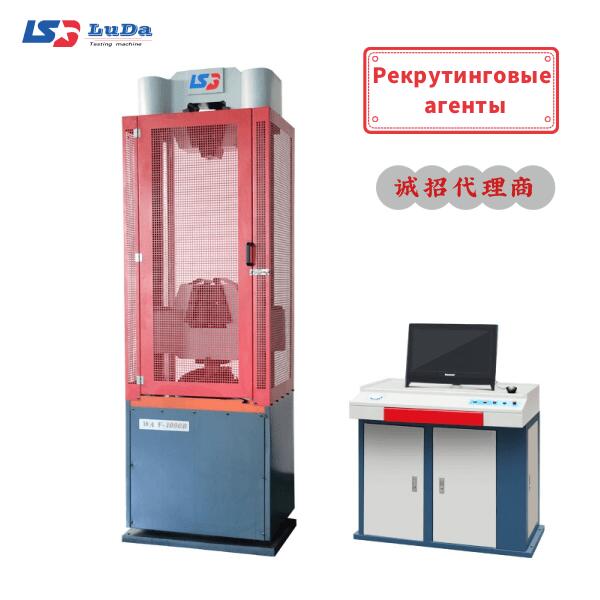

WAW series electro-hydraulic servo steel strand special test machine is mainly used for the tensile test of steel strand, can do the tensile, compression and other tests of metal materials; equipped with appropriate fixtures, can also be used to conduct the tensile, compression, bending and shear tests of non-metallic materials.
Features：
The machine adopts high precision displacement sensor, accurate data.
Adopt high precision electronic extensometer, accurate and effective measurement of deformation value.
Adopt high-resolution acquisition system, fast data acquisition speed and high accuracy.
Hydraulic control adopts integrated oil servo control system, which can automatically lift, automatically position, automatically set the mark, realize equal force, equal displacement and mixed control.
Main technical parameters and specifications:
| Model Specifications | WAW-600G | WAW-1000G |
| Maximum test force(KN) | 600 | 1000 |
| Measuring range and measuring range(KN) | 50-600 | 100-1000 |
| Indication relative error | ±1% | ±1% |
| Maximum Tensile Test Space(mm) | 1050 | 1050 |
| Maximum compression test space(mm) | 950 | 950 |
| Working piston stroke(mm) | 180 | 180 |
| Upper and lower platen size(mm) | Φ223×Φ230 | Φ223×Φ230 |
| Bending test roll spacing(mm) | 500 | 500 |
| Distance between two pillars in tension and compression space(mm) | 510 | 510 |
| Maximum rise speed of table plate(mm/min) | 60 | 60 |
| Maximum lifting speed of moving beam(mm/min) | 240 | 240 |
| Total motor power(Kw) | 2.1 | 2.1 |
| Main external dimensions(mm) | 890×590×2700 | 890×590×2700 |
| Dimension of force measuring cabinet(mm) | 1000×700×850 | 1000×700×850 |
| Overall weight(kg) | 3200 | 3200 |
| Operating noise(dB) | ≤75 | ≤75. |
