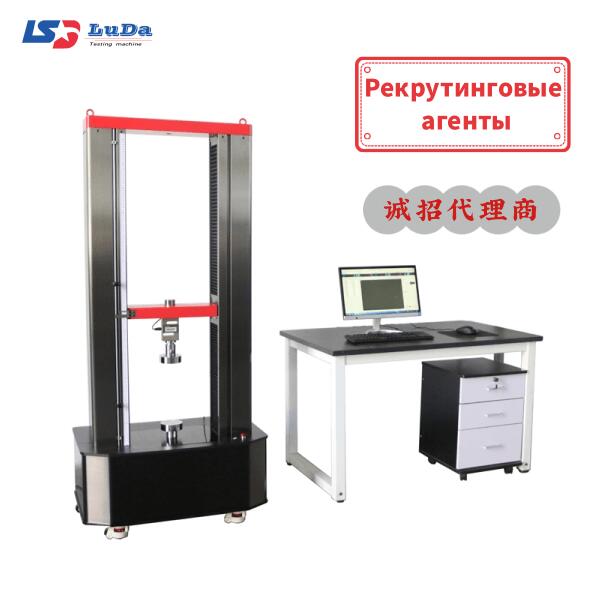

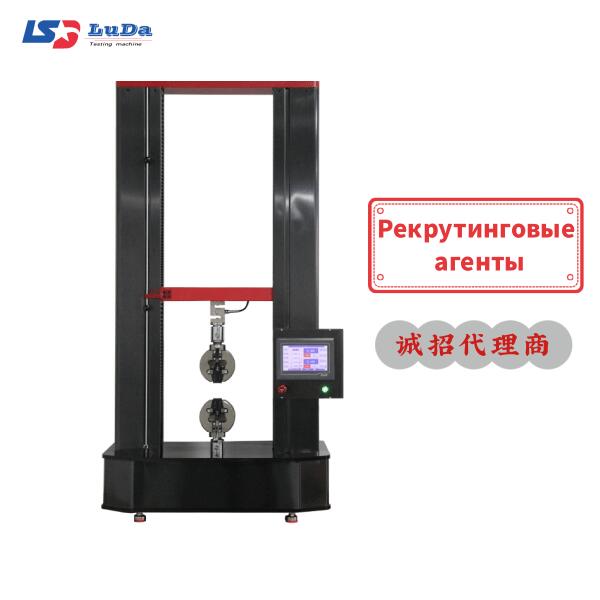

WDW-S20 electronic universal material testing machine
|
Поделитесь страницей в Социальных сетях
|
|
本产品适用于各种金属、非金属及复合材料的力学性能测试分析，可获得最大试验力值、断裂力值、屈服强度、上下屈服强度、抗拉强度、试验材料的抗压强度、断裂伸长率、拉伸弹性模量和弯曲弹性模量。 特点：安全位置和实验位置高度任意锁定。超载自动保护，软件限位和电子限位双重保护。 Main technical parameters and specifications: | Specification Model | WDW-20 | | Control method | Microcomputer computer control | | Maximum test force (KN) | 20 | | Accuracy grade | Level 1 (can be customized to 0.5 on request) | | Test force measurement range | 1% to 100% FS throughout without graduation | | Relative error of test force value | ±1% or less | | Test force resolution | 1/±300000 of the maximum test force with constant resolution throughout | | Deformation measurement range (FS) | 0.2%～100% | | Relative error of deformation value | Within ±0.5% of indicated value | | Deformation resolution | 1/±300000 of the maximum deformation | | Relative Error of Displacement Value | Within ±0.5% of indicated value | | Displacement resolution (µm) | 0.025 | | Force control rate adjustment range (FS/S) | 0.01～5% | | Relative error of force control rate | Within ±1% of the set value | | Deformation rate adjustment range (FS/S) | 0.02～5% | | Relative error of deformation control rate | Within ±1% of the set value | | Crossbar speed adjustment range (mm/min) | 0.01～500 | | Constant force, constant deformation, constant displacement control range (FS) | 1%～100% | | Constant force, constant deformation, constant displacement control accuracy | Within ±1% of the set value when the set value is <10%FS; within ±0.1% of the set value when the set value is ≥10%FS | | Effective stretching space (without clamps) (mm) | 800 | | Effective test width mm | 400 | | Power supply power kW | 0.4 | | Supply Voltage | AC220V±10%，50Hz | | Dimension (mm) | 800×450×1600 | | Weight (kg) | 190 |
Цена: 99999USD руб.
Вас также могут заинтересовать
本产品适用于各种金属、非金属及复合材料的力学性能测试分析，可获得最大试验力值、断裂力值、屈服强度、上下屈服强度、抗拉强度、试验材料的抗压强度、断裂伸长率、拉伸弹性模量和弯曲弹性模量。
本产品适用于各种金属、非金属及复合材料的力学性能测试分析，可获得最大试验力值、断裂力值、屈服强度、上下屈服强度、抗拉强度、试验材料的抗压强度、断裂伸长率、拉伸弹性模量和弯曲弹性模量。
本试验机采用液压力、电脑显示、主体和测力计分体设计，具有操作方便、工作稳定可靠、测试精度高、受力平稳等特点。该设备适用于金属、水泥、混凝土、塑料等材料的拉伸、压缩、弯曲、剪切试验，产品符合GB/T 228.1-2021标准对压力试验机的具体规定。 特点： 本机采用高精度位移传感器，数据准确。 采用高分辨率采集系统，数据采集速度快，准确性高。 采用液压手动加载、电脑显示、主体和测力计分位设计，操作方
The testing machine is also known as tensile machine, is powered by hydraulic pressure, mainly suitable for doing metal material tensile, compression and other tests, equipped with appropriate fixture
The testing machine is also known as tensile machine, is powered by hydraulic pressure, mainly suitable for doing tensile, compression and other tests on metal materials, equipped with appropriate fix
Внимание!
Информация по WDW-S20 electronic universal material testing machine предоставлена компанией-поставщиком zhejiang luda machinery instrument co.,ltd. Для того, чтобы получить дополнительную информацию, узнать актуальную цену или условия постаки, нажмите ссылку «Отправить сообщение».
|
