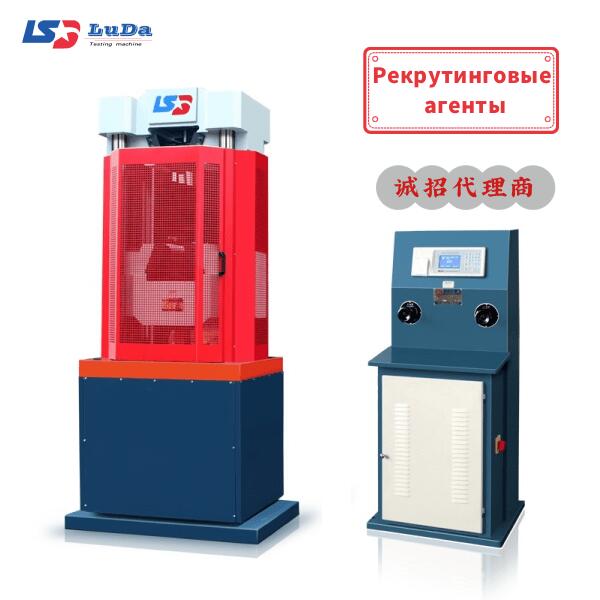

The testing machine is also known as tensile machine, is powered by hydraulic pressure, mainly suitable for doing metal material tensile, compression and other tests, equipped with appropriate fixtures, can also be used to conduct non-metallic materials tensile, compression, bending and shear test to test the mechanical properties of materials, in the materials industry, metallurgy, non-ferrous metallurgy, building materials, machinery industry, transportation, etc. have a wide range of applications. Products comply with the national standard GB/T228.1-2021 and other standard requirements. Main technical parameters and specifications: | Model Specifications | WE-100B | WE-300B | WE-600B | WE-1000B | | Maximum test force(KN) | 100 | 300 | 600 | 1000 | | Range and measurement range (KN) | 10～100 | 30～300 | 60～600 | 100～1000 | | Relative error of value | ±1% | ±1% | ±1% | ±1% | | Stretching space (mm) | 480 | 480 | 690 | 690 | | Compressed Space (mm) | 480 | 480 | 620 | 620 | | Flat specimen clamping thickness(mm) | 0～15 | 0～15 | 0～15 | 0～40 | | Round specimen clamping diameter(mm) | 10～20 | 10～32 | 13～40 | 20～60 | | Working piston stroke(mm) | 120 | 120 | 170 | 170 | | Upper and lower platen size(mm) | Φ176×Φ176 | Φ180×Φ180 | Φ220×Φ230 | Φ220×Φ230 | | Bending test roll spacing(mm) | 100～450 | 100～450 | 100～500 | 100～500 | | Distance between two pillars in tension and compression space(mm) | 420 | 420 | 510 | 510 | | Maximum rise speed of table plate(mm/min) | 100 | 100 | 100 | 100 | | Maximum lifting speed of moving beam(mm/min) | 240 | 240 | 240 | 240 | | Total motor power(Kw) | 1.3 | 1.3 | 1.8 | 1.8 | | Main external dimensions(mm) | 720×550×1660 | 730×600×1840 | 820×600×2000 | 870×600×2080 | | Dimension of force measuring cabinet(mm) | 530×500×1270 | 530×500×1270 | 530×500×1270 | 530×500×1270 | | Overall weight(kg) | 1600 | 1800 | 2100 | 2400 | | Operating noise(dB) | ≤75 | ≤75 | ≤75 | ≤75 |
Цена: 99999 руб.
Вас также могут заинтересовать
本产品适用于各种金属、非金属及复合材料的力学性能测试分析，可获得最大试验力值、断裂力值、屈服强度、上下屈服强度、抗拉强度、试验材料的抗压强度、断裂伸长率、拉伸弹性模量和弯曲弹性模量。
本产品适用于金属、非金属及复合材料、构件的拉伸、压缩、弯曲、剪切等力学性能测试，产品符合国家标准GB/T228.1-2021等金属拉伸试验标准要求. 该产品采用下装式油缸，微电脑控制，电液伺服，具有精度高、操作简单、方便、数据存储量大等优点。 特点： 本机采用高精度压力位移传感器，配合高灵敏度数字阀，响应速度快，分辨率高。 液压控制采用一体化油液伺服控制系统，操作方便，稳定可靠。 具有工作状态智能
This product is suitable for metal, non-metal and composite materials, components of tensile, compression, bending, shear and other mechanical properties testing, the product conforms to the national
The tester adopts the design of hydraulic force, computer display, main body and force meter subposition, with easy operation, stable and reliable work, high test accuracy, smooth force and other char
The testing machine is also known as tensile machine, is powered by hydraulic pressure, mainly suitable for doing tensile, compression and other tests on metal materials, equipped with appropriate fix
